Easy to use Windows XP Professional preinstalled (Windows model). Adopted wide-temperature, round-the-clock 2.5" HDD secures large capacity data embedded into a machine. In addition, this model has 2 HDD slots for optional HDD, and it is possible to build RAID 1 (mirroring) system inside.
Functions of 3 kinds of interface boards are condensed into the small package. It performs various data acquisition and controlling such as Voltage measurement, position sensing, Voltage output and Dry contact output. Reduce cost of your test and measurement system.
| Model | Wide Temperature HDD Model BX-100n-DC5121-C01 |
Multifunction I/O Model BX-100n-DC5311-C02 |
|
|---|---|---|---|
| OS | Windows XP Professional | Windows Embedded Standard | |
| CPU | Intel® Atom™ Processor N270 (1.60GHz / FSB533MHz) | ||
| Chipset | Intel® 945GSE + ICH7M-DH | ||
| System Memory | 1GB (200pin SO-DIMM×1) PC2-4300 DDR2 SDRAM (up to 2GB) | ||
| Video | Controller | Intel® GMA950 (Built in Intel 945GSE Chipset) | |
| Resolution |
|
||
| Color | 16,770,000 colors (Max.) | ||
| Audio | AC'97-compliant, LINE OUT x1, MIC IN x1 | ||
| Storage | IDE | 2 ports (2 devices[Max.]) for CF CARD slot | |
| SATA | Serial ATA 1.0-compliant 2 ports (2 devices[max.]), Corresponding to RAID 0/RAID 1 for HDD mount | - | |
| Multifunction I/O |
Analog I/O equivalent to AIO-163202F-PE *2 |
- | Analog input: Single-end input 32ch, 16bit, 2μsec/ch(Max.) Analog output: 2ch, 16bit, 10μsec(Max.) Digital I/O: 8ch for each, LVTTL Counter: 2ch, 32bit up counter, 10MHz(Max.) |
| Digital I/O equivalent to DIO-1616L-PE *2 |
- | Digital input: 16ch, Optocoupler isolated input 12 to 24VDC, Corresponding to current sink output Digital output: 16ch, Optocoupler isolated open collector output, current sink output |
|
| Pulse Counter input equivalent to CNT-3204MT-LPE *2 |
- | 4ch, LVTTL, 32bit up/down countter, 10MHz(Max.) 2-phase / single-phase / single-phase input with gate control |
|
| LAN | Intel® 82573L Controller 1000BASE-T *3 / 100BASE-TX / 10BASE-T×2 (Supports Wake On LAN) |
||
| USB | 4ch (USB 2.0-compliant) | ||
| Serial Port | RS-232C 5ch (Baud rate 50 - 115,200bps) RS-422A/485 1ch (Baud rate 50 - 115,200bps) |
RS-232C 2ch (Baud rate 50 - 115,200bps) | |
| Hardware Monitor | Monitoring CPU temperature, board temperature and power voltage | ||
| RAS | Watch Dog Timer | Software programmable, 255 level (1sec - 255 sec) RESET, interrupt or external output when time-up occurs | Software programmable, 255 level (1sec - 255 sec), RESET when time-up occurs |
| Remote Reset | Input signal from external | - | |
| RTC/CMOS | Real time clock precision error: within ±3 minutes per month (25°C) Lithium backup battery life: 10 years or more (Built in ICH7M-DH) |
||
| Power Management | Power management setting in BIOS, Power On by Ring/Wake On LAN Supports PC98/PC99 ACPI Power management | ||
| Interface | Video | 1 Port (29pin DVI-I Connector), bundled DVI-Analog RGB adapter | |
| Audio | LINE out: φ3.5 Stereo mini jack, Full-scale output level 1.5Vrms(Typ.), Dual 50mW Amplifier MIC in: φ3.5 Stereo mini jack, Full-scale input level 1.3Vrms(Typ.) |
||
| CF CARD Slot | 2 Slots (CF1/CF2), CF CARD Type I, Bootable | 2 Slots (CF1/CF2), CF CARD Type I, Bootable Installed one CF CARD(2GB, 1Pattition) on CF1 slot.*4 |
|
| HDD Slot | 2 Slots (HDD1/HDD2) for 2.5 inch SATA hard drive, Slot-in system Installed HDD(40GB, 1Pattition) on HDD1 slot. | - | |
| LAN | 2 Ports (RJ-45 connector) | ||
| USB | 4 Ports (A-TYPE connector) | ||
| RS-232C | 5 ch (9pin D-SUB connector [male]) | 2 ch (9pin D-SUB connector [male]) | |
| RS-422A/485 Generalpurpose I/O / RAS |
1 ch (15pin D-SUB connector [female]) | - | |
| PCI Express | 1 port (18pin PCI Express External Cabling), PCI Express 1.0a(x1)-compliant | ||
| Analog I/O equivalent to AIO-163202F-PE*2 |
- | 1 port (96pin harf pitch connector) | |
| Digital I/O equivalent to DIO-1616L-PE *4*2 |
- | 1 port (37pin D-SUB connector [female]) | |
| Pulse Counter input equivalent to CNT-3204MT-LPE*2 |
- | 1 port (68pin 0.8mm itch connector) | |
| Power Supply | Input Voltage/th> | 12 - 24VDC *5 | |
| Absolute maximum rating | 10.8 - 31.2VDC | ||
| Power Consumption | 12V 4.0A (Max.) 24V 1.9A (Max.) |
12V 4.0A (Max.) 24V 2.0A (Max.) |
|
| External device power capacity |
CF CARD Slot : +3.3VDC 1A(500mA x2) USB I/F: +5VDC 2A(500mA x4) |

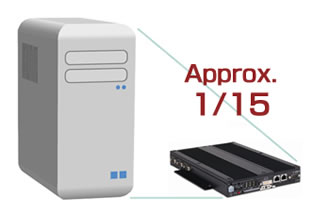

||
| Dimensions (mm) | 182(W) x 270(D) x 35(H) (Exclusive of protrusions) | ||
| Weight | Non-HDD: Approx. 2.2kg Installed One-HDD: Approx. 2.3kg, Two-HDD: Approx. 2.4kg |
Approx. 2.1kg | |
| Operating Temperature *6 | 0 to 45°C *3 | 0 to 50°C *3 | |
| Storage Temperature | -10 to 60°C | ||
| Humidity | 10 to 90%RH (no condensation) | ||
| Floating Dust Particles | Normal | ||
| Corrosive Gases | None | ||
| Noise Resistance | Line-noise | AC Line：±2kV *7 Signal Line：±1kV (IEC61000-4-4 Level 3，EN61000-4-4 Level 3) |
|
| Atmospheric discharge | Contact discharge：±4kV (IEC61000-4-2 Level 2，EN61000-4-2 Level 2) Atmospheric Discharge：±8kV (IEC61000-4-2 Level 3，EN61000-4-2 Level 3) |
||
| Vibration Resistance | Sweep Resistance | 10 to 57Hz: 0.5G 25min. each in x, y and z directions (JIS C60068-2-6-compliant) 10 - 57Hz / semi-amplitude 0.15mm, 57 - 150Hz / 2.0G 40min. each in x, y and z directions (JIS C60068-2-6-compliant, IEC60068-2-6-compliant |
10 - 57Hz / semi-amplitude 0.15mm, 57 - 150Hz / 2.0G 40min. each in x, y and z directions (JIS C60068-2-6-compliant, IEC60068-2-6-compliant) |
| Impact Resistance | 10G half-sine shock for 11ms in x, y, and z directions (JIS C60068-2-27-compliant, IEC60068-2-27-compliant) |
||
| Grounding | Class D grounding (previous class 3 grounding), SG-FG:Connected | ||
| *1 | Those resolusion cannot be configured with the analog RGB output. |
| *2 | Please refer the User's Manuals for each expansion board maded by CONTEC. |
| *3 | The operating temperature is from 0 to 45°C when you use the 1000BASE-T. |
| *4 | The capacity of CF is a value when 1GB is calculated by 1 billion bytes. The capacity that can be recognized from OS might be displayed fewer than an actual value. |
| *5 | Use a power cable shorter than 3m. |
| *6 | Please refer to chapter3 "Installation Requirements" on the User's Manual if you need to know more detail. |
| *7 | This value comes with AC adapter LDA100W-24-SN or LDA100W-12-SN made by |
