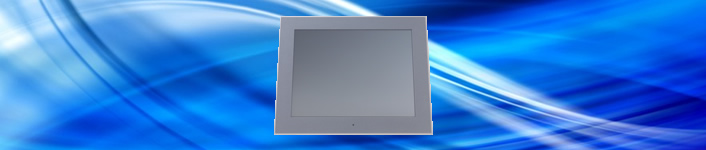

15" Intel® Atom™ N270 Ultra Slim Panel PC



• 15" 1024 x 768 XGA Color TFT LCD Display
• Super Slim and Compact Mechanical Design
• S.D.R. (Smart Data Recovery) Design
• Flush Front Panel For NEMA4/IP65 Compliance
• PC/104 Expansion Bus
• Compatible with OPC and SCADA Application Software
• Fanless Design
• Wide Range DC Input

System

CPU	Soldered onboard Intel® Atom™ N270 1.6GHz CPU
Memory	1 x 200-pin DDR2 SO-DIMM Socket up to 2GB at 400/533MHz Soldered onboard 512KB FRAM for S.D.R.
Chipset	Intel® 945GSE + ICH7M
LAN	2 x Realtek RTL8111 Gigabit Ethernet controllers
Watchdog Timer	Programmable as 250ms, 500ms,1 second

Storage

HDD/Type	1 x 2.5" drive bay for SATA HDD/SSD
Flash Disk	1 x CompactFlash Type II Socket

LCD Display

Size/Type	15" TFT LCD
Max. Resolution	1024 x 768, XGA
Backlight Life	50,000 hours
Luminance	350 cd/m²
Max. Colors	262,144

Touch Screen

Type	8-wire, Analog resistive
Light Transparency	Above 80%
Lifespan	10 million touches at single point

I/O

Serial Port	2 x RS-232 ports 2 x RS-422/485 ports
Parallel Port	1 x LPT
CAN-Bus Port	1 x CAN-Bus shared with RS-422/485 port (PT-1561 Only)
USB Port	2 x USB 2.0 (Host)
KB/MS	1 x PS2 Keyboard and Mouse
Expansion Bus	1 x PC/104

Power System

Connector	One ME-050 3-pin DC jack for power adapter
Power Input	DC 9 ~ 33V
Power Consumption	45W

Mechanical & Environmental

Operating Temp.	0 ~ 50°C (32 ~ 122ºF)
Storage Temp.	-20 ~ 60°C (-4 ~ 140ºF)
Operating Humidity	10 ~ 95% RH @40°C (non-condensing)
Ingress Protection	Front panel: NEMA4, IP65
Vibration Protection	1 Grms (with CF or SSD)
Dimensions (W x D x H)	390 x 52.3 x 310 mm (15.35" x 2.06" x 12.2")
Weight (Net)	4.4 kg (9.7 lb)
Enclosure	Aluminum (Front Panel), PC + ABS (Bezel)

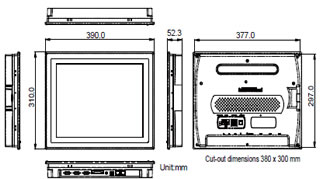

Dimensions

Ordering Information

PT-1561-E	15" Intel® Atom™ N270 ultra slim fanless touch panel computer barebone
PT-1561	T1561-E with FRAM, Isolated COM, CAN-BUS, 1GB SDRAM
VMB-1560	PT-1560/PT-1561 VESA mount bracket kit
ARM-2439	VESA-75/100 desktop LCD monitor stand
PAC-P065W	65W AC/DC adapter kit
