INDUSTRIAL PC

High Reliability and Flexibility




The high-speed CPU IntelR Core i series model is available. You can use the VPC-2000 series in a wide range of fields, not only for mechanical control or information terminal but transport facilities, lifeline, medical equipment, security, parking-area, amusement and so on. Pentium G6950 model provides superior cost performance that is inherited from previous series, and improves processing capabilities dramatically.



The high-reliability and long-life design utilizes accumulated know-how about production of electronic device. It is equipped with embedded type chipset (IntelR Q57) and 80 PLUS power supply that is high efficiency, heat deterioration-free and long-life. It has also RAS and RAID functions.



CONTEC has not only the latest Windows OS that is Windows 7, but Windows XP model for customers who have plans to replace old computers with new computers. Multiplelanguages version OS is available to help your global business.
(Japanese / English / Chinese)



We have the On-site maintenance service for you to use reliably the VPC-2000 serise. This service provides field service by professional engineers for maximum 7 years. (Only in Japan)


Easy Maintenance and Scalable

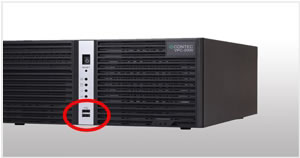

The VPC-2000 series has a front access structure to replace fan, battery and hard disk by just removing a front panel.

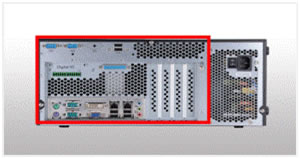

The VPC-2000 series has 2 x gigabit LAN, 8 x USB2.0, printer port, 4 x COM(RS-232C) and hardware RAS function as standard. This product has also 4 expansion slots that are 2 x PCI, 1 x PCI Express(x16) and 1 x PCI Express (x4). These slots respond flexibly to various application. In addition, this series is equipped with 2 display output terminal, DVI-I/15pin HD-SUB (analog RGB), so it can display on dual monitor.


Selection Guide

Chassis
CPU
  • Core i7 860
    2.8GHz
  • Core i5 660
    3.3GHz
  • Pentium G6950
    2.8GHz
Memory
  • 2GB
    1GB×2 DDR3 SDRAM
  • 4GB
    1GB×4 DDR3 SDRAM
Strage Drive1
  • None
  • 160GB
    SATA HDD
  • 2TB
    SATA HDD
  • 160GB　Mirroring
    Software RAID 160GB×2 SATA HDD
  • 2TB　Mirroring
    Software RAID 2TB×2 SATA HDD
  • Hot pluggable
    160GB Mirroring
    Hardware RAID 160GB×2 SATA HDD
  • Hot pluggable
    2TB　Mirroring
    Hardware RAID 2TB×2 SATA HDD
Drive2
  • None
  • 160GB
    SATA HDD
  • 2TB
    SATA HDD
Optical
Drive
  • DVD Super Multi
OS
  • None
  • Windows 7 Professional
    for Embedded Systems(32-bit)
    Japanese version
  • Windows 7 Professional
    for Embedded Systems(32-bit)
    English version
  • Windows XP Professional
    for Embedded Systems(32-bit)
    Japanese version
  • Windows XP Professional
    for Embedded Systems(32-bit)
    Multiple languages version(Japanese-Chinese-English)


Standerd Model

Pentium Model

VPC-2000-16200B

CPU Pentium G6950 (2.8GHz)
Memory 2GB
HDD 160GB
Optical Drive DVD Super Multi
OS None

VPC-2000-16222B

CPU Pentium G6950 (2.8GHz)
Memory 2GB
HDD 160GB
Optical Drive DVD Super Multi
OS Windows XP
Core i5 Model

VPC-2000-36222B

CPU Core i5 660 (3.3GHz)
Memory 2GB
HDD 160GB
Optical Drive DVD Super Multi
OS Windows XP

VPC-2000-37225B

CPU Core i5 660 (3.3GHz)
Memory 4GB
HDD 160GB
Optical Drive DVD Super Multi
OS Windows 7
Core i7 Model

VPC-2000-47225B

CPU Core i7 860 (2.8GHz)
Memory 4GB
HDD 160GB
Optical Drive DVD Super Multi
OS Windows 7


Specifications

Model VPC-2000 series    Model VPC-2000 series
CPU
[Selection]
  • Intel Core i7 860 (2.8GHz)
  • Intel Core i5 660 (3.33GHz)
  • Intel Pentium G6950 (2.8GHz)
   Interface Audio
  • LINE IN×1
  • LINE OUT×1
  • MIC IN×1 (3.5mmφ mini jack)
BIOS AMI BIOS    Display
  • 29pin connector [DVI-I]×1
  • 15pin HD-SUB (female) connector [Analog RGB]×1
Chipset Intel Q57 + ICH10DO
Memory
[Selection]		 240pin DDR3 SDRAM DIMM　ECC-noncompliant
  • 2GB (1GB×2)
  • 4GB (1GB×4) *1
   PS/2 6pin mini-DIN connector×2
   USB USB 2.0-compliant×8 (Front 2/Back 6)
Hard Disk Drive
[Selection]
  • 3.5"SATA 160GB×1
  • 3.5"SATA 160GB×2
  • 3.5"SATA 2TB×1
  • 3.5"SATA 2TB×2
  • 3.5"SATA 160GB×2
    (Morring SoftwareRAID)
  • 3.5"SATA 2TB×2
    (Mirroring SoftwareRAID)
  • 3.5"SATA 160GB×2
    (Mirroring HardwareRAID, Hot pluggable)
  • 3.5"SATA 2TB×2
    (Mirroring HardwareRAID, Hot pluggable)
   Serial RS-232C : 9pin D-SUB connector (male)×4
   Parallel Supported SPP/ECP/EPP 25pin D-SUB×1 (female)
   LAN 10BASE-T/100BASE-TX/1000BASE-T×2 (RJ-45)
   Disigal I/O
  • Front LED output×2port
  • Back output×2port
  • Back input×4port
(Software API is supported, User application is enable)
Expansion Slots
  • PCI Express (x16)×1
    (Maximum：176mm (L)×110mm (H)) *2
  • PCI Express (x4)×1
    (Maximum：176mm (L)×110mm (H))
  • PCI×2
    (32bit/33MHz Maximum：176mm (L)×110mm (H))
   RASFunction
  • Watch dog timeer-function 1sec -255 sec
    (Causes a reset upon )
  • Rremote reset / Remote / Power on by external input signal
  • Monitoring-function
    (Fan rotation speed, CPU temperature, Power voltage)
Optical Drive DVD super multi drive    Physical dimensions
(mm)		 66(W)×470(D)×370(H) (No protrusions)
       Preinstalled OS
[Selection]
  • Windows XP Professional 32bit
    Japanese version)
  • Windows XP Professional 32bit
    (Japanese-Chinsese-English Multiple language version)
  • Windows 7 Professional 32bit
    (Japanese version)
  • Windows 7 Professional 32bit
    (English version)
*1 BTO selected model can have a maximum of 4GB(2GB×2). OS 32bit installed model can recognize a maximum of 3.5GB.
*2 The graphic board is set on PCI Express x16 slot, when you choose Core i7 860.
*3 ： Now applying for approval.


Environment Requirements

Model VPC-2000 series    Model VPC-2000 series
Operating temperature/humidity 5 - 40℃／20 - 80％RH (No condensation)    Vibration
resistance		 Sweep
resistance		 10 - 57Hz／semi-amplitude 0.015m 57 - 150Hz／0.2G 40 min, each in X, Y,and Z directions (JIS C0040-compliant, IEC68-2-6-compliant)
Storage temperature/humidity -20 - 60℃／5 - 80％RH (No condensation)    Impact resistance 10G, half-sine shock for 11ms in x, y and z directions (JIS C0041-compliant, IEC68-2-27-compliant)
Floating dust/Corrosive gas Not to be excessive／ -    Standards
  • RoHS-compliant
  • VCCI classA-compliant
  • FCC Part15 ClassA-compliant
  • EMC directive(EN55022, EN55024)
    and Low voltage directive(EN60950-1)
Noise
resistance		 Static electricity
  • Contact Discharge/±4KV(EN61000-4-2 Level 2, IEC1000-4-2 Level 2)
  • Signal line/±8KV(EN61000-4-2 Level 3, IEC1000-4-2 Level 3)

Line noise
  • AC line / 2KV
  • Signal line / 1KV (EN61000-4-4 Level 3, IEC1000-4-4 Level 3)



On-Site Maintenance Service (Fare-Paying)

Maintenance Service Pack The 1st year The 2nd year The 3rd year The 4th year The 5th year The 6th year The 7th year
Maintenance Service Pack
for 2 years		 MSP-F2VPC2 2 years Field service No on-site maintenance service
Consume extended pack
Extension of term is max 7 years		 Field service → → → →
Maintenance Service Pack
for 3 years		 MSP-F3VPC2 3 years Field service No on-site maintenance service
Consume extended pack
Extension of term is max 7years		 Field service → → →
Extended Maintenance
Service Pack for 1year 		MSP-S1VPC2 Max.
7 years		 If you consume extended maintenance service pack within a time frame of maintainance service pack for 2 or 3 years, field service is continued a year by year up to 7 years.
